The P33 Features:
- 24 volt DC drive motor and controller
- Electromagnetic disk brake
- Ergonomic handle with safety reversing switch and horn
- 30AH polycase batteries with internal 110VAC charger
- Battery discharge indicator
- US patent 754,415

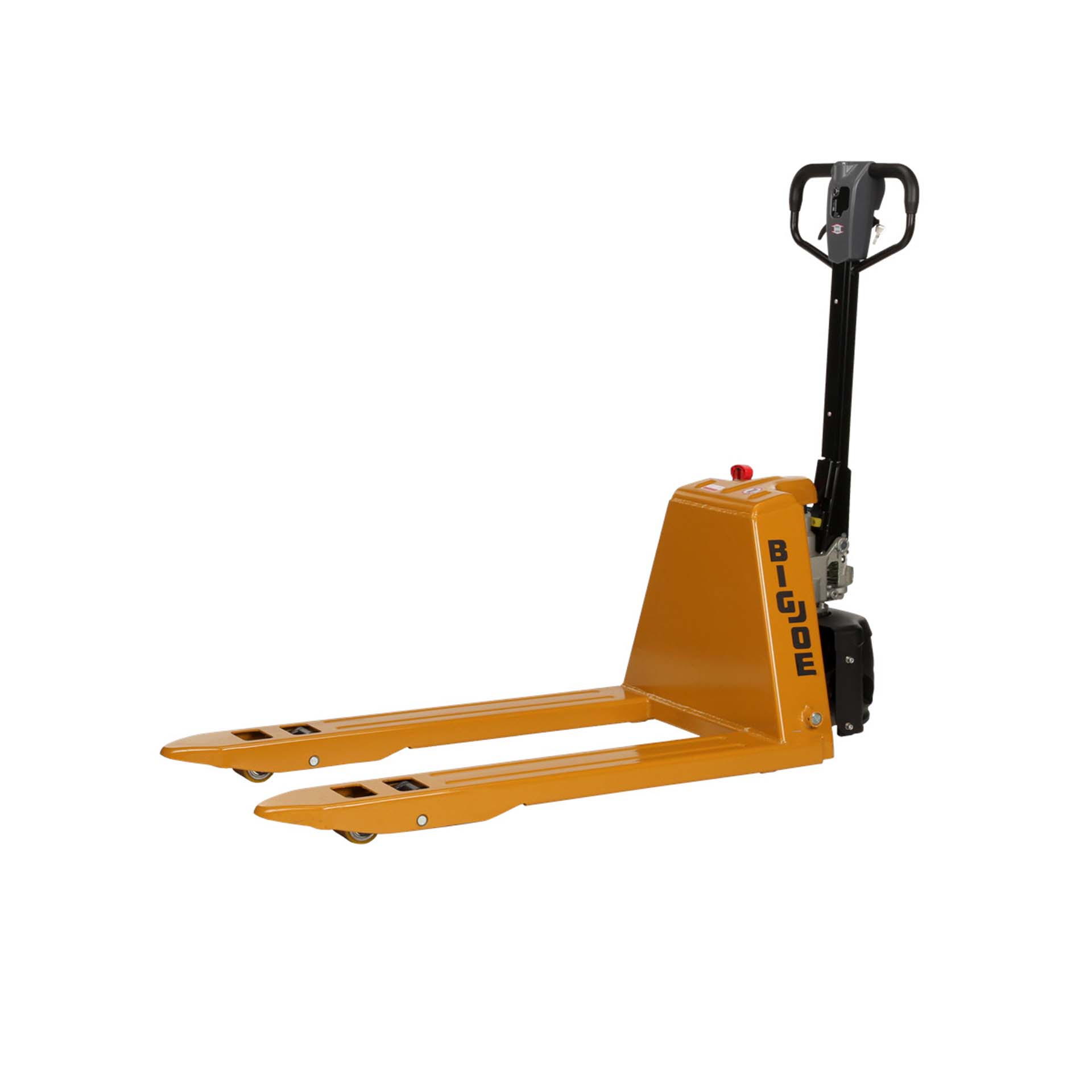

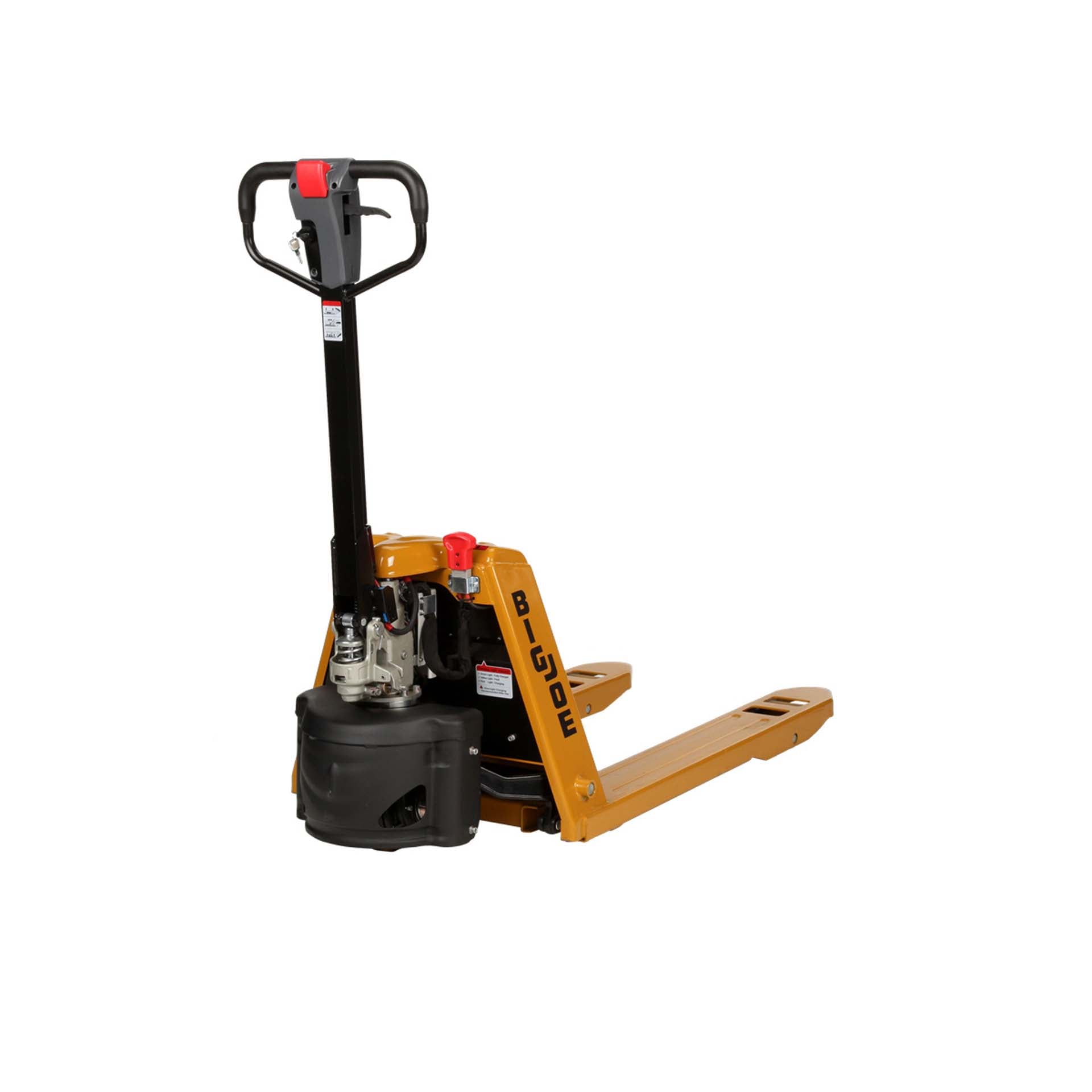

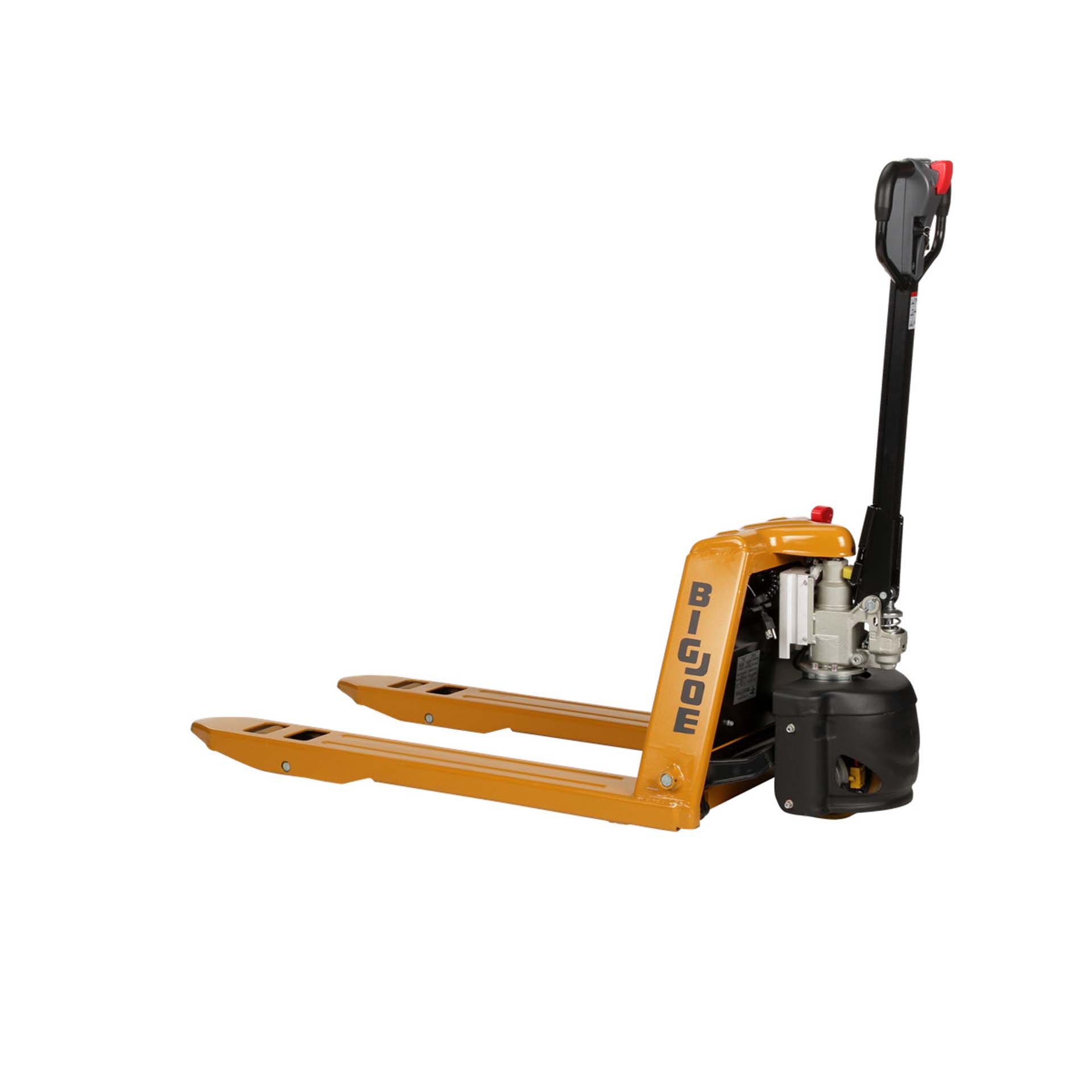

P33 – Semi-Electric Pallet Jack
3,300 lb. Capacity Semi-Electric Pallet Jack
Our 3,300lb capacity semi-electric pallet truck can help to reduce operator strain caused by pulling or pushing loads on a manual hand pallet jack. Single speed powered travel is provided for both forward and reverse, while lifting and lowering is accomplished with a standard manual pump.
SPECIFICATIONS
| • Vehicle Type | Motorized pallet truck with manual lift pumps |
| • Capacity | 3,300lbs. @ 24” load center |
| • Power | 24 volt electric with DC controller |
| • Max Lift Height | 7.5” |
| • Collapsed Height | 3″ |
| • Fork Dimensions | 27” W x 45” L standard |
| • Vehicle Dimensions | 62″ OAL, 27″ OAW |
| • Turning Radius | 56″ |
| • Travel Speed | 2.5mph empty, 2.0mph loaded |
| • Battery Type | Polycase maintenance free |
| • Battery Capacity | 30AH |
| • Charger | Internal 110VAC plug-in |
